*(Power Cord Not Included) It takes a standard PC/Monitor power cord that can be purchased via amazon/online for under $10.

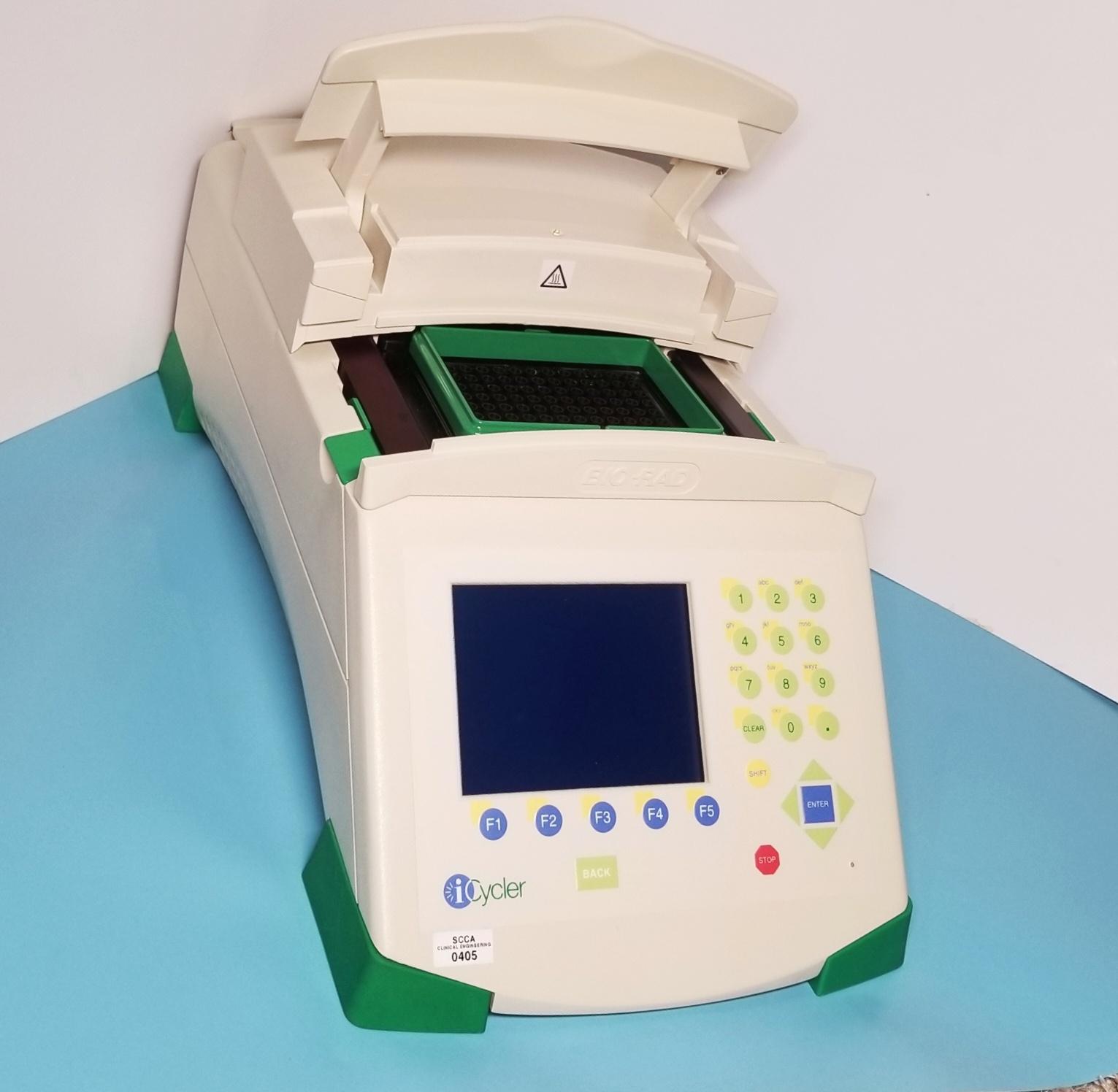

Biorad iCycler Thermal Cycler

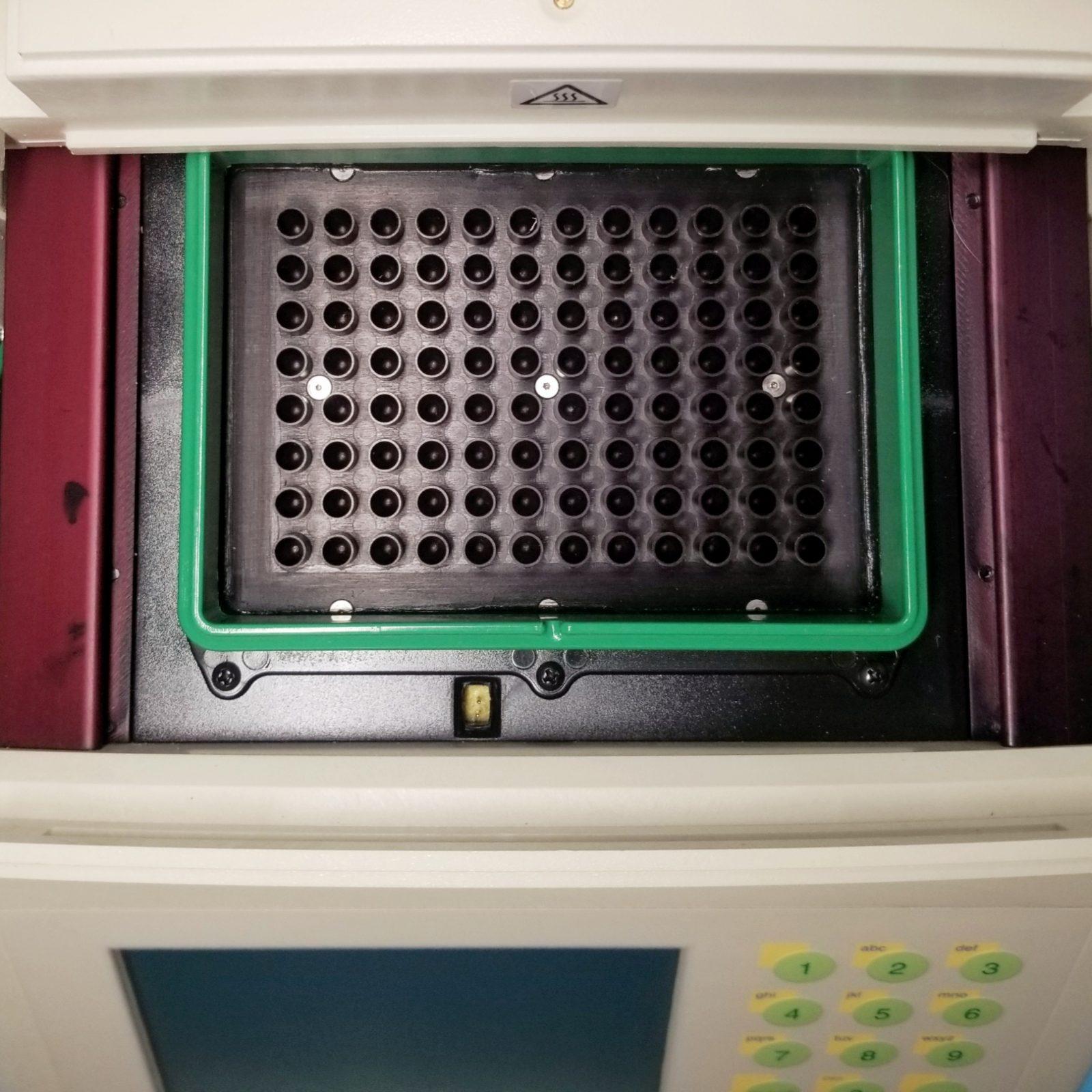

The Biorad iCycler is a 96-well gradient thermal cycler equipped to handle everyday demands of PCR applications with extremely reproducible quantitation and excellent uniformity. This thermal cycler features built-in PCR protocols and an easy-to-use interface. The iCycler’s gradient can accommodate 2ml and 5ml tubes, strips, and plates, allowing for increased cycling speed and greater throughput.
The Biorad iCycler can be used for clinical diagnostics, gene expression and amplification, and measuring viral loads and pathogen detection, among other applications.
Biorad iCycler Thermal Cycler Specifications
|Range||4° to 100°C|
|Cycling Speed||96 x 0.2 ml Reaction Module: with 20 µl sample in a 0.2 ml tube in the 96 well module, after full warm up, when cycling between 50°C and 95°C; at least 3.3°C/sec maximum heating rate and 2.0°C/sec maximum cooling rate.|
|Storage Cooling||less than 3 minutes to cool from 40°C to 4°C|
|Overshoot||less than 0.5°C|
|Accuracy||±0.3°C to NIST traceable standard after 30 seconds at 90°C,|
|Uniformity||well-to-well uniformity of ±0.4°C within 30 seconds after|
arrival at 90°C
|Input Gradient Range||1° to 25°C|
|Functional Gradient Range||5° to 25°C|
|Min Temp Gradient||40°C|
|Max Temp Gradient||99°C|
|Number of Programs||256 on board|
|Cycles/Protocol||up to 9|
|Steps/Cycle||up to 9|
|Repeats/Cycle||up to 600|
|Dwell Time||00:01 – 99:59 minutes|
|Built-In Protocols||Templates for cycle sequencing, Touchdown, RT PCR, nested PCR, long PCR|
