Systematics Welding Spool Gun w/ MHG Control Module and Leads
Spool Gun Specifications
| Amperage | 60% @ 250A |
| Weight (Gun Only) | 2.75 Lbs. |
| Weight (Gun & Cable) | 25′: 14 Lbs. 50′: 27 Lbs. |
| Wire Feed Rate (In./Min.) | 50 to 650 IPM |
| Wire Size | .023″, .030″, .035″, and .045″ |
| Wire Type | Aluminum, Flux-Cored, Mild Steel, and Stainless Steel |
| Spool Size | Standard 4″ |

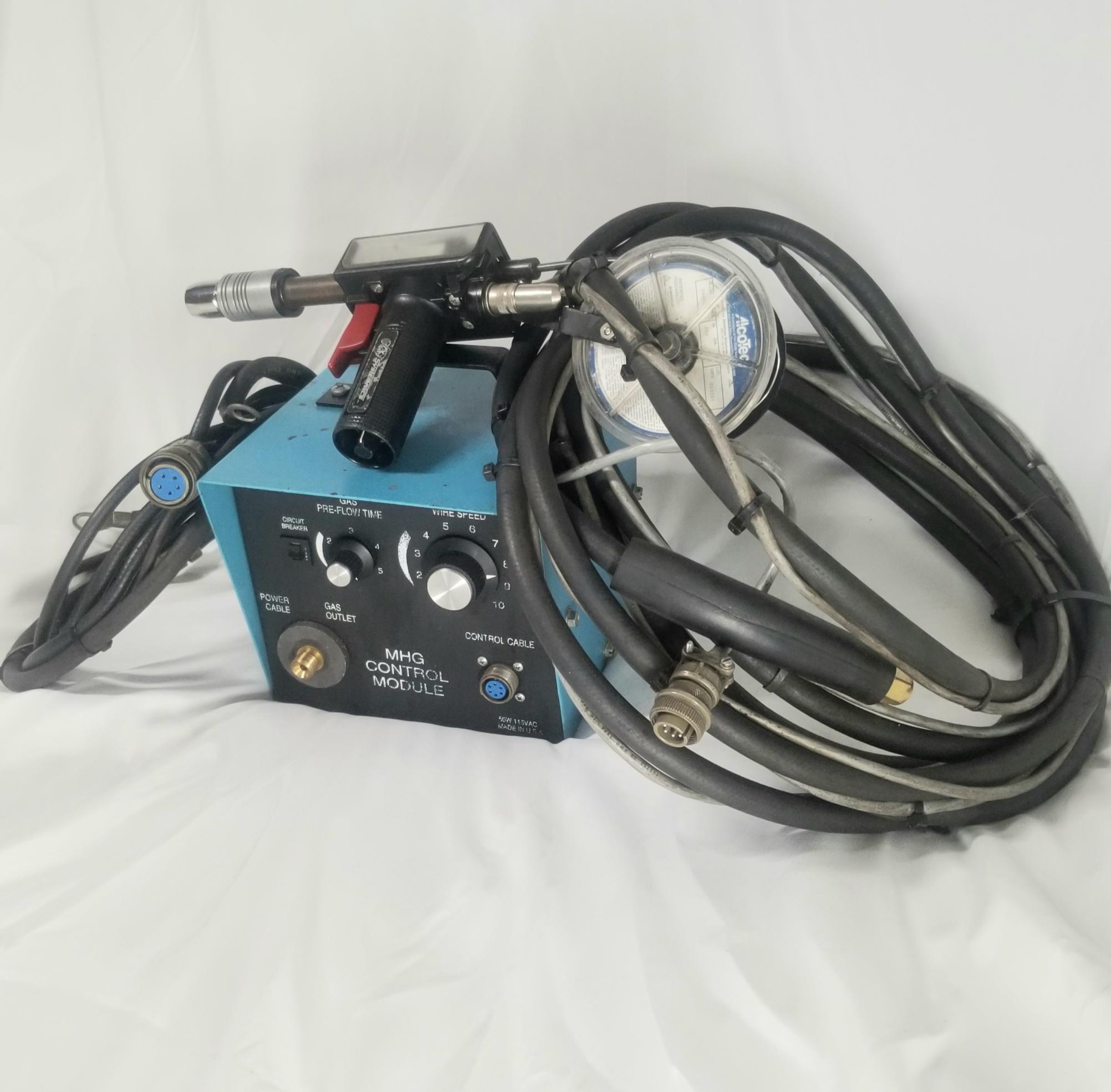

MHG Control Module
The Magnum Control Module is an interface between the welding power source and the spool gun. The Control Module and Spool Gun combination provide a system for welding primarily with aluminum electrode wire using a constant voltage welding power source. The Control Module provides control of both wire speed and gas flow. It also provides connections from the welding power cable, control cable, and gas hose from the power source and gas cylinder regulator to the spool gun. The Control Module will operate with any power source that provides constant voltage welding output and has an output contactor.
